Measurements View
Drag & drop the measurement data into the software. All measurement data is automatically assigned to the corresponding data set before or after changing the acoustic properties of the room.
Room Acoustics Reporter
The Room Acoustics Reporter is a PC software for automatically generating reverberation time measurement reports and analyzing the frequency response spectrum. The software supports acousticians and experts in the visualization and detailed evaluation of measurement data recorded with the Sound Level Meter.
- Reverberation Time according to ISO 3382, DIN 18041, etc.
- Room acoustic prediction (Sabine, Eyring)
- Import of user-defined absorber data and tolerances
- Analysis of 1/1 and 1/3 spectra as well as Noise Curves
- Standard-compliant reporting
Analyzing Reverberation Time or Noise Spectra
The Room Acoustics Reporter software is the ideal tool for data analysis and reporting of the following measurements:
- Before / after comparison of acoustic room treatments
- Adding sound-absorbing materials for evaluation
- Comparison with standard-specific tolerances
- Averaging of noise spectra recorded at multiple measurement positions
- Calculation of the sound level difference D between two rooms
- Background noise correction
- Verification of measurement results using tolerance data for a pass/fail decision
- Automatic conversion of 1/12 octave data into one-third-octave bands
- Creation of standard-compliant measurement reports
Multi-Views
-
-
Calculations View
Evaluate the individual data sets for each measurement. The software presents the reverberation time spectrum of the room.
-
Results View
The Room Acoustics Reporter displays the average reverberation time in a table and in a standard 50 Hz to 10 kHz graph. At the same time, the average reverberation time in the middle frequency range (Tmid) is calculated.
The Room Acoustics Reporter software can simulate the influence of additional acoustic absorbers installed in the room. Customer-specific absorption coefficients of surface absorbers or objects can be imported into the software. The software calculates the expected new reverberation time and the resulting sound level change in the room. In addition, it presents the A/V ratio and the average sound absorption coefficient in the room. The simulation is performed according to Sabine’s formula and the DIN EN 12354-6 standard. For rooms with higher absorption, the simulation can also be performed according to Eyring.
More functions

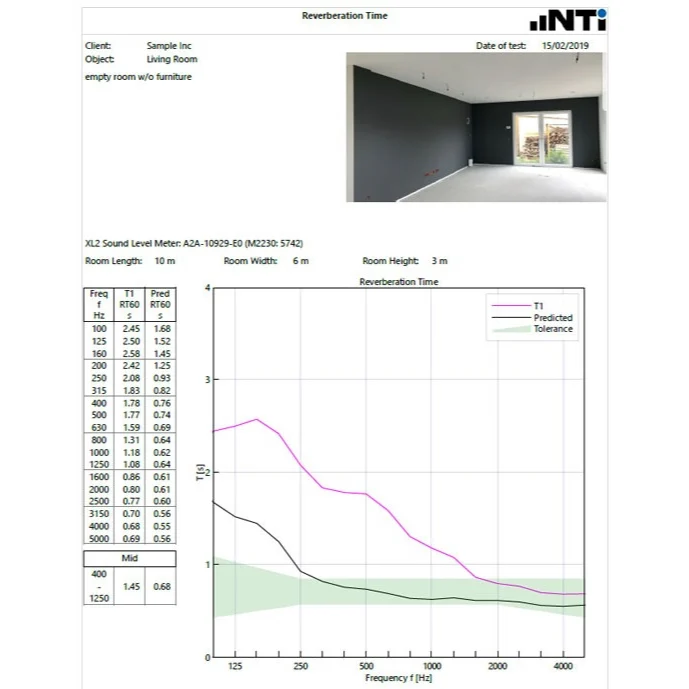

With the completed descriptions of the measurements taken, the standardized measurement report is ready for printing. Customized documentation is supported by the user-defined logo and signature.

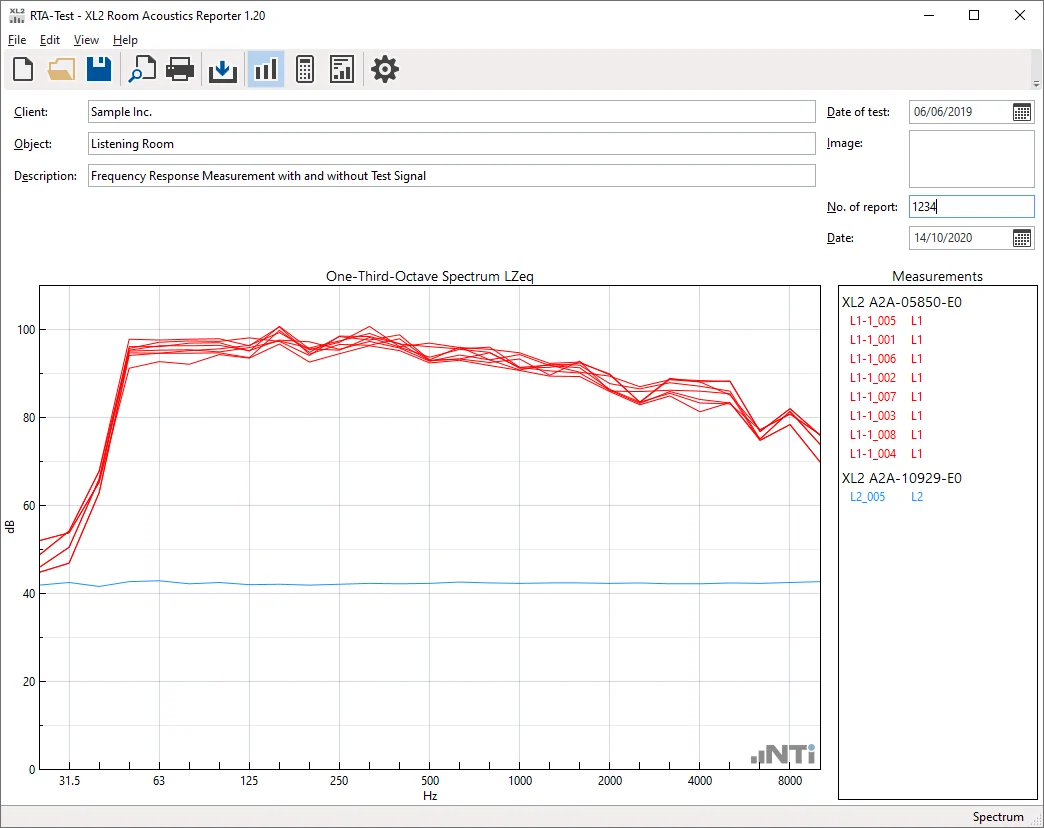

The Room Acoustics Reporter calculates the average of the imported octave or one-third-octave spectra and compares the result against the specified tolerance range. In addition, you can display the level sum or difference of two data sets in the measurement report. The software supports data recorded by the measurement function Spectrum (RTA) as well as the specific XL2 functions Noise Curves, 1/12 Octave and Cinema Meter.

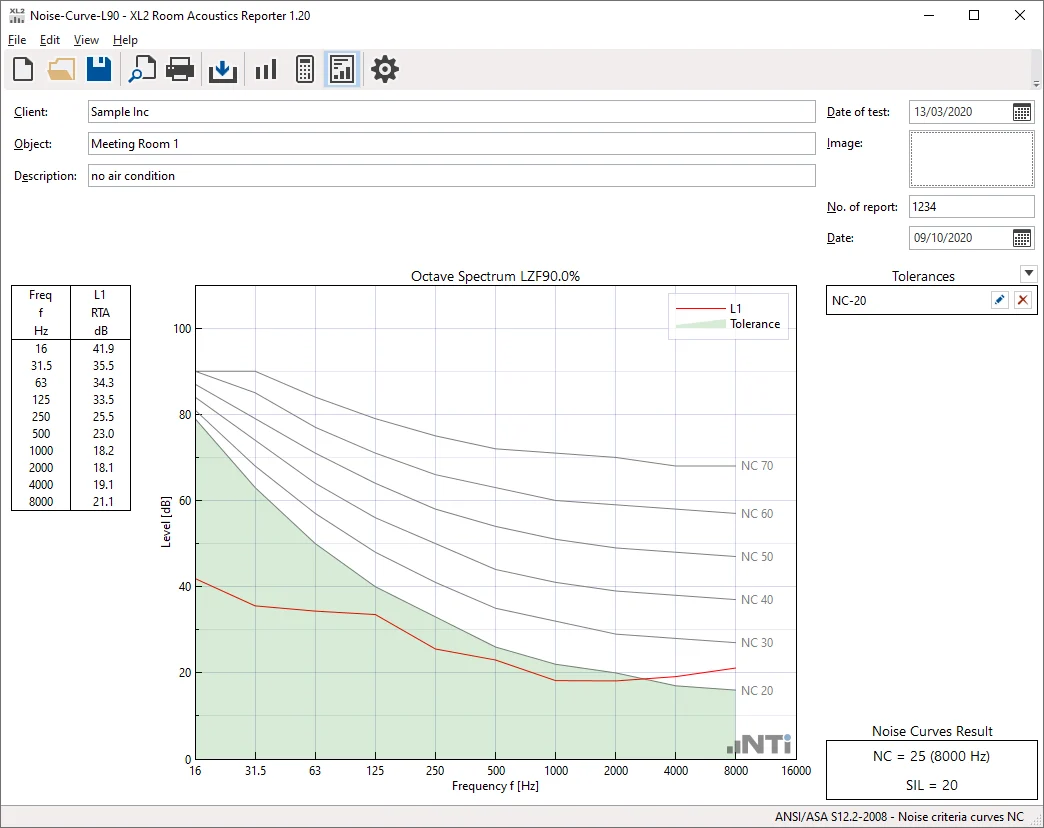

Room Acoustics Reporter offers a dedicated solution for generating standardized noise curve reports. The software calculates the average background noise spectrum in the room. This may be compared with the target range – based on the usage of the room. The software supports data recorded by the measurement function Spectrum (RTA) as well as the specific XL2 functions Noise Curves, 1/12 Octave and Cinema Meter.
Room Acoustics Reporter supports the following Noise Curve standards:
- Noise Criteria NC (ANSI/ASA S12.2-2019)
- Room Noise Criterion RNC (ANSI/ASA S12.2-2019)
- Noise Rating NR (ISO/R 1996-1971)
- Grenzkurven GK (DIN 15996:2020)

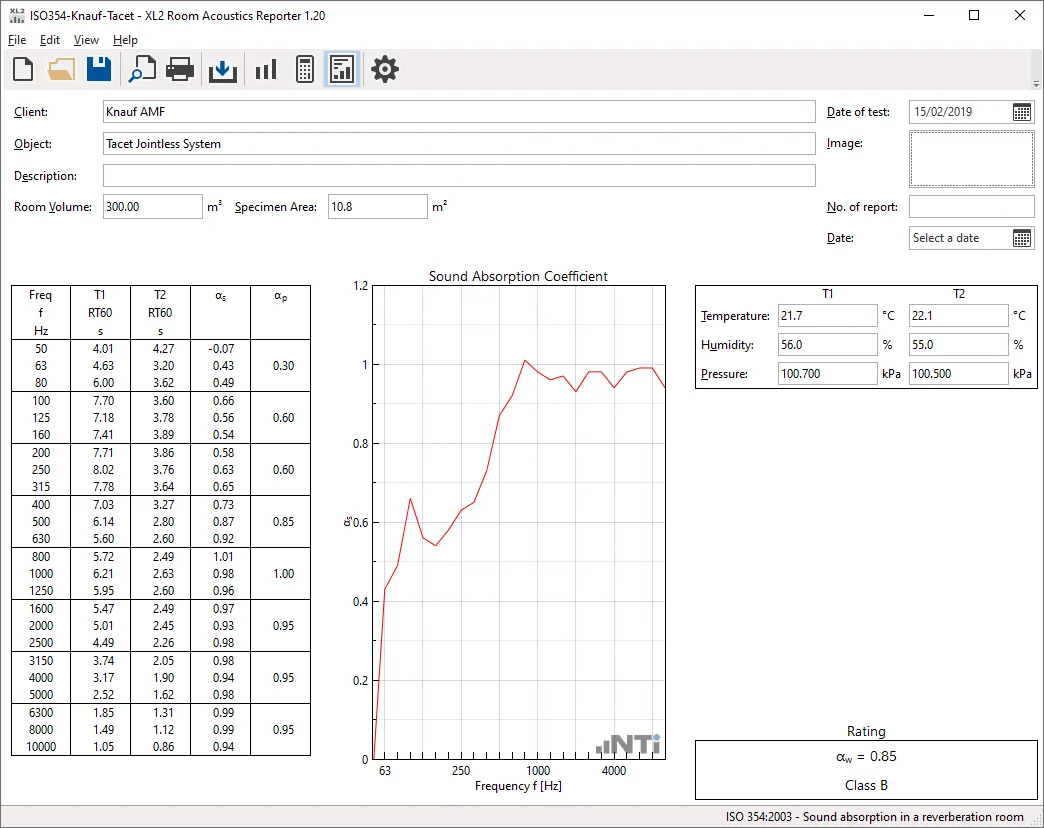

The ISO 354 and ASTM C423 standards specify a method for determining the sound absorption coefficient of acoustic materials used to clad walls and ceilings, or the equivalent sound absorption area of individual objects such as furniture or people in the room.
The reverberation time is measured with the Sound Level Meter, with and without absorbers in the room. Based on this data, the Room Acoustics Reporter software calculates the sound absorption coefficient according to the ISO 354, ISO 11654 and ASTM C423 standards. The standardized measurement report also gives the sound absorber class A-E and the single-number values NRC (Noise Reduction Coefficient) and SAA (Sound Absorption Average).
Evaluate Room Acoustics Reporter now
Feel free to test the Room Acoustics Reporter software with demo data. Room Acoustics Reporter is a free-to-use PC software. The data import from the Sound Level Meter is chargeable.
System requirements: PC with Windows Vista, 7, 8.x, 10, 11
Downloads:
How to import my Data Sets into the Room Acoustics Reporter?
Import
The purchase of a Room Acoustics Reporter 365 subscription allows the unlimited import of measurement data from one instrument into the Room Acoustics Reporter PC-Software for a period of one year. Data which has been recorded prior the subscription may then also be imported. Alternatively, a permanent license is available for each instrument.
The Room Acoustics Reporter software can be installed on multiple computers. This provides experts with the freedom to distribute their measurement projects among team members and clients.
The full software functionality is enabled by having one of the following options installed on the instrument:
- XL2 Extended Acoustic Pack
- XL3 Extended Room Acoustics
Configurations
-
Room Acoustics Reporter 365
annual subscription service
Room Acoustics Reporter 365 Company
annual company subscription service for 3 or more instruments
Room Acoustics Reporter Permanent
permanently activated license for one instrument
